PRINTRONIX LINE MATRIX

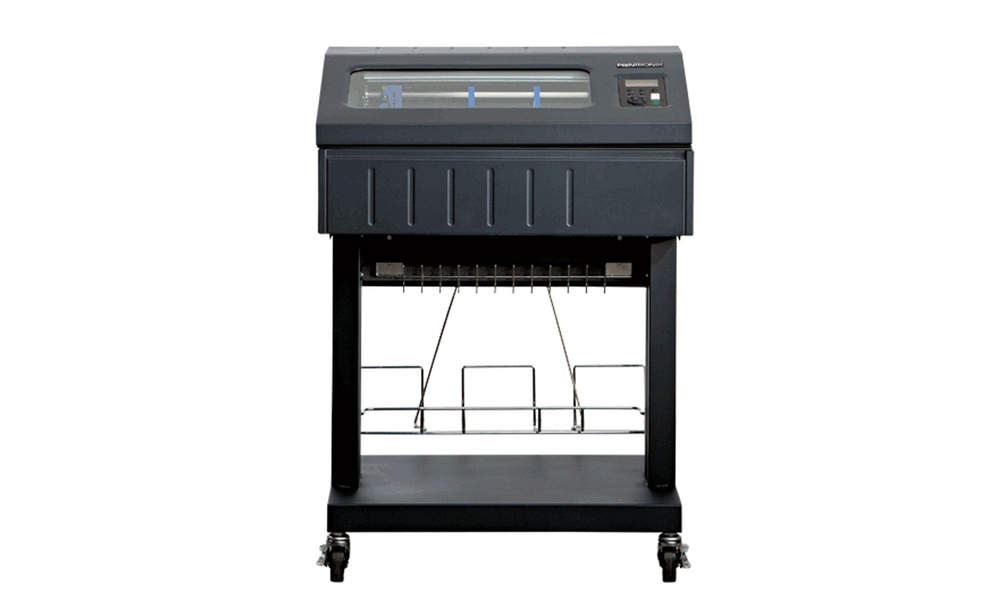

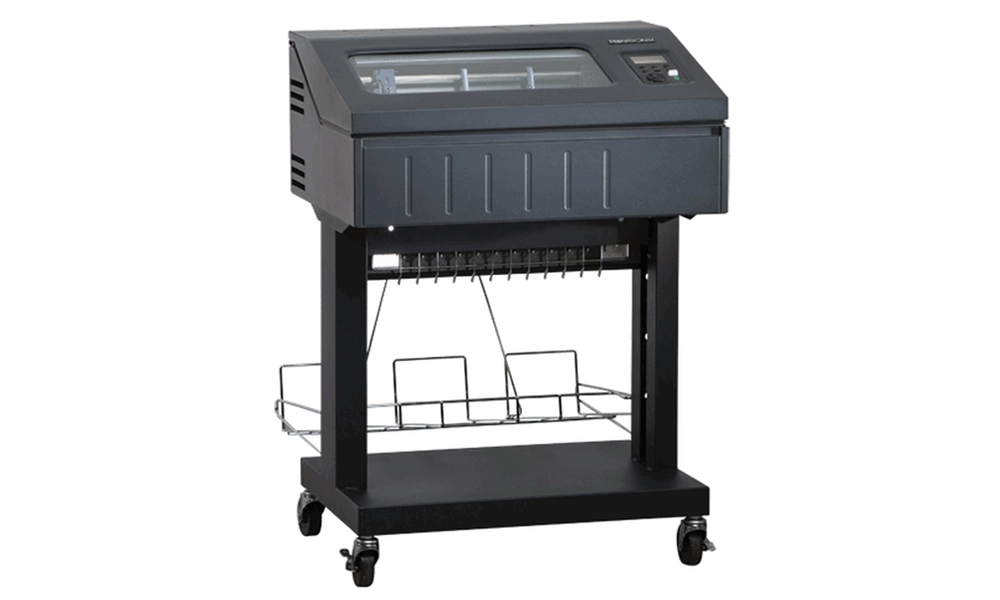

Printronix P8000HD OpenPrint Pedestal Line Matrix Printer (P8PPH-0111-0)

180 × 180 – 79 inches per minute *
120 × 120- 165 inches per minute *
180 × 90 – 147 inches per minute *
90 × 180 – 147 inches per minute *
90 × 90 – 236 inches per minute *

* The specification is based on a vertical image density of 25%, which means that the print image exists in 25% of the vertical dot rows available. If the vertical coverage is higher or lower, the speed will decrease or increase proportionally. The width of the image has no effect on the printing speed. The highest resolution is usually used with high density bar code applications. OpenPrint can increase the speed when lower resolutions are used.


PRINTRONIX P8000HD

Graphics resolution

180 × 180 with secure scanning enabled (horizontal and vertical barcodes)
120 × 120 with secure scanning enabled (horizontal and vertical barcodes)
90 × 180 with secure scanning enabled (only vertical barcodes)
180 × 90 with secure scanning enabled (only horizontal barcodes)
90 × 90 with secure scanning disabled *
** barcode optimization with secure scanning is enabled by default for resolutions of 120 PPP and above. It is disabled for 90 × 90.
